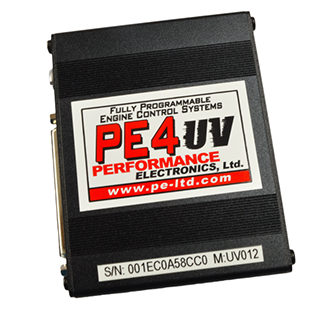

PE4-UV012 Unmanned Vehicle ECU
Part Number: 91000412

Call for Pricing

The PE4-UV012 is a compact, lightweight engine control unit developed specifically for the unmanned vehicle market. This fully programmable ECU includes CAN bus, 2 injector drivers and 2 internal ignition coil drivers, dedicated TPS, MAP, IAT, trigger and sync inputs, 2 additional generic digital and analog inputs and tachometer output. Additional features of the PE4-UV012 include 2 (0-450°C) thermocouple inputs and 2 (0-1000°C) thermocouple inputs, stepper motor driver and 4 digital outputs. The ECU comes with peMonitor and peViewer software.

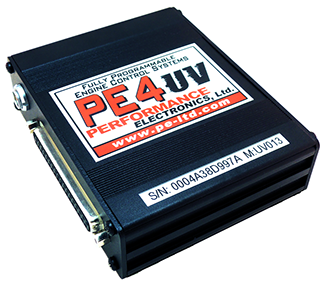

PE4-UV013 Unmanned Vehicle ECU

Part Number: 91000413

Call for Pricing

The PE4-UV013 is a compact, lightweight engine control unit developed specifically for the unmanned vehicle market. This fully programmable ECU includes CAN bus, 2 injector drivers and 2 internal ignition coil drivers, dedicated TPS, MAP, IAT, trigger and sync inputs, 2 additional generic digital and analog inputs and tachometer output. Additional features of the PE4-UV013 include coolant temp input, 3 additional analog inputs, 1 (0-1000°C) thermocouple input, stepper motor driver and 4 digital outputs.  The ECU comes with peMonitor and peViewer software.

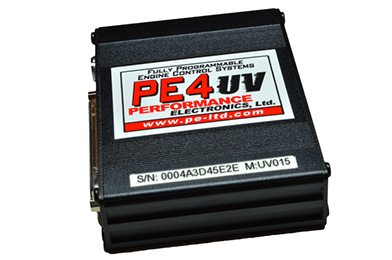

PE4-UV015 Unmanned Vehicle ECU

Part Number: 91000415

Call for Pricing

The PE4-UV015 is a compact, lightweight engine control unit developed specifically for the unmanned vehicle market. This fully programmable ECU includes CAN bus, 2 injector drivers and 2 internal ignition coil drivers, dedicated TPS, MAP, IAT, trigger and sync inputs, 2 additional generic digital and analog inputs and tachometer output. Additional features of the PE4-UV015 include coolant temp input, 1 (0-450°C) thermocouple input and 2 (0-1000°C) thermocouple inputs, stepper motor driver and 4 digital outputs. The ECU comes with peMonitor and peViewer software.

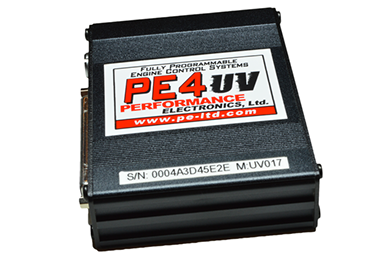

PE4-UV017 Unmanned Vehicle ECU

Part Number: 91000417

Call for Pricing

The PE4-UV017 is a compact, lightweight engine control unit developed specifically for the unmanned vehicle market. This fully programmable ECU includes CAN bus, 2 injector drivers and 2 internal ignition coil drivers, dedicated TPS, MAP, IAT, trigger and sync inputs, 2 additional generic digital and analog inputs and tachometer output. Additional features of the PE4-UV017 include 3 (0-450°C) thermocouple inputs and 1 (0-1000°C) thermocouple input, 2 digital outputs for servo operation and 2 additional digital outputs. The ECU comes with peMonitor and peViewer software.

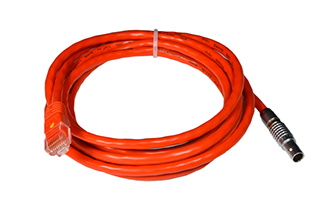

PE4 Ethernet Cable

Part Number: 99002004

$115

PE4 series Ethernet cable to LEMO. For use with PE4-UV ECUs. 7 ' long.

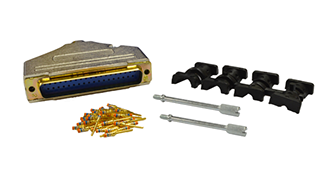

PE4 Main Harness Connector

Part Number: 40000004

$98.50

PE4 series main harness connector, 37-Pin. Includes connector body, backshell and gold plated crimp pins.



If you have questions about our products, are interested in purchasing a PE4 or simply want to learn more about how PE could help you with a customized UV solution, please Contact Us directly.
